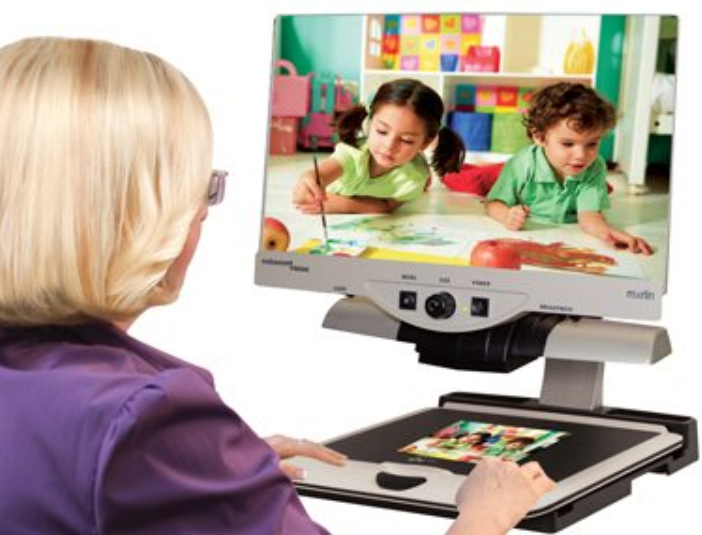

Click to enlargeMerlin Ultra 22” (MR2UE22A)

The new affordable Merlin ultra offers full high-definition color and contrast, resulting in sharp crystal clear images and vibrant color accuracy. Merlin ultra’s new Full HD camera allows for a wide field of view, displaying more text on the screen in amazing detail. Simply the greatest value and best picture quality available in HD desktop magnification, there’s even more to see with Merlin ultra!

Easily read books and magazines, read and write letters, manage your financial records, view color photos, do crossword puzzles, and even pursue a favorite hobby. See for yourself what makes Merlin ultra the greatest value and the absolute best picture quality available in HD desktop video magnification.





Features
  • New Full HD camera
  • Amazing 1920 x 1080 resolution
  • High resolution HD LCD for best image quality
  • Wide field of view
  • Simple, easy-to-use tactile controls
  • LED lighting for truer picture quality
  • Wide range of adjustable magnification (2.2x to 73x depending on screen size & zoom table selected)
  • Adjustable viewing modes for high contrast personalization
  • XY table for smooth continuous reading with a user friendly lock mechanism
  • Computer compatible – toggle between CCTV and computer (Additional hardware may be required)
  • Set up is easy, just plug in and begin

    Specifications
    General:
    LCD 22” Dimensions: 22”H (maximum) x 20”W x 20”D
    (61cm x 51cm x 51cm)
    Operating temperature range: 50-104°F / 10-40°C
    Storage temperature range: 32-122°F / 0-50°C


    Monitor:
    Resolution: 1920 x 1080 (22” model)
    Resolution: 1920 x 1080 (24” model)
    Response Rate: 5 milliseconds (22” & 24” monitor)
    Contrast Ratio: > 1000:1 (22” & 24” models)
    Color Depth: Over 16 million Colors
    Controls: Light Switch On/Off, Brightness, Magnification, Mode, Power


    Magnification:
    22” LCD: 2.2x (minimum) to 67x (maximum)
    *Zoom range for 22” monitor is based on a 16:9 aspect ratio


    *Zoom Ranges subject to change


    Power Supply:
    110V-240 VAC 50-60HZ
    5VDC 4.0A
    Equipment Classification (IEC 601-1):
    Type of Protection: Class 1
    Degree of Protection: Type B
    Mode of Operation: Continuous


    Color Modes:
    – 4 Default Modes (True Color, Black & White, Enhanced
    Positive, Enhanced Negative)
    – 5 Color Select Modes
    3 Default Modes: (Yellow on Blue, Black on Yellow, Yellow on Black)
    2 Programmable* Modes
    *Up to 28 Color Select Mode Combinations are available


    XY Table:
    XY table size: 16” (406 mm) x 16 1/4” (413 mm), 3/8” retaining edge
    Working space height: 7 3/8” (18.7mm)
    Table height clearance: 1 3/8” (35mm)
    Video output Resolution on LCD:
    SMPTE 296M – HD 720p 60/50
    SMPTE 292M – HD 1080i 60/50



    Part# MR2UE22A



    Availability: Usually ships in 2-3 business days

    Merlin Ultra 22” (MR2UE22A)
    MR2UE22ARegular price: $6,249.95Ergoguys price: $5,324.95
